Renesas CPU Series

RZ/G2UL, RZ/G2L



CPU	Core	Clock [GHz]	NPU/TOPS	GPU
RZ/G2UL	Single Cortex-A55 + Cortex-M33	1.0 GHz
RZ/G2L	Dual Cortex-A55 + Cortex-M33	1.2 GHz



YG2LX	YG2UL
43 x 45mm	39 x 37mm









1. SoM by MYIR

System on Module



Item (Link)	CPU	Part Number	Description

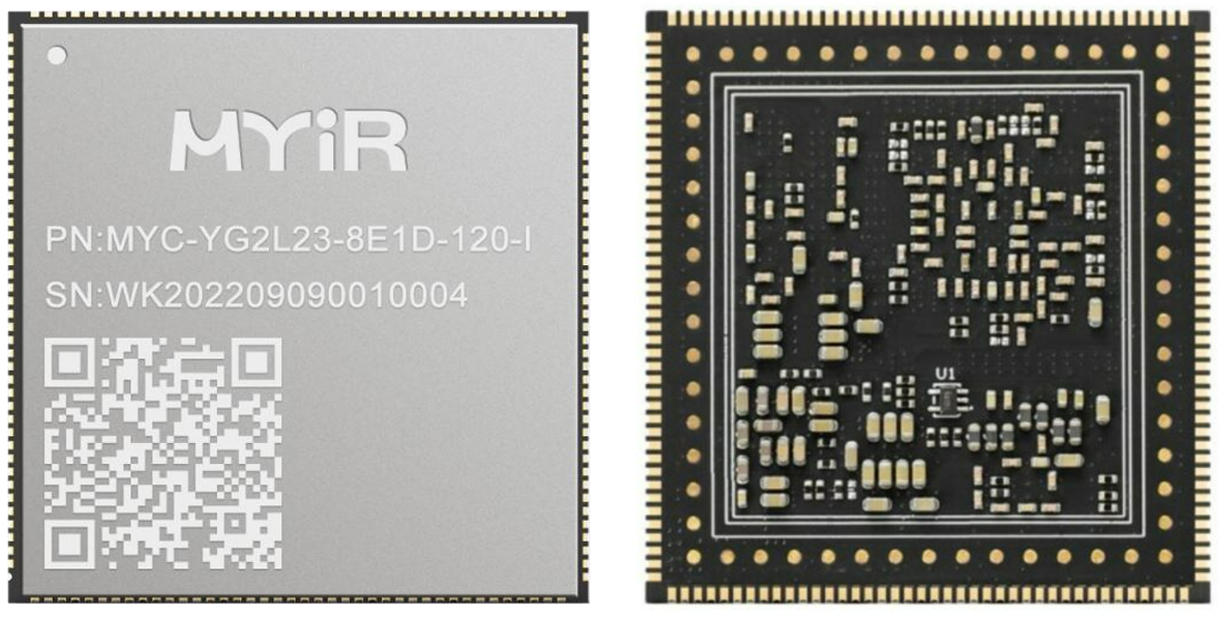

§ MYC-YG2LX	RZ/G2L	MYC-YG2L23-8E1D-120-I	1GB DDR4, 8GB eMMC, industrial
	RZ/G2L	MYC-YG2L23-8E2D-120-I	2GB DDR4, 8GB eMMC, industrial

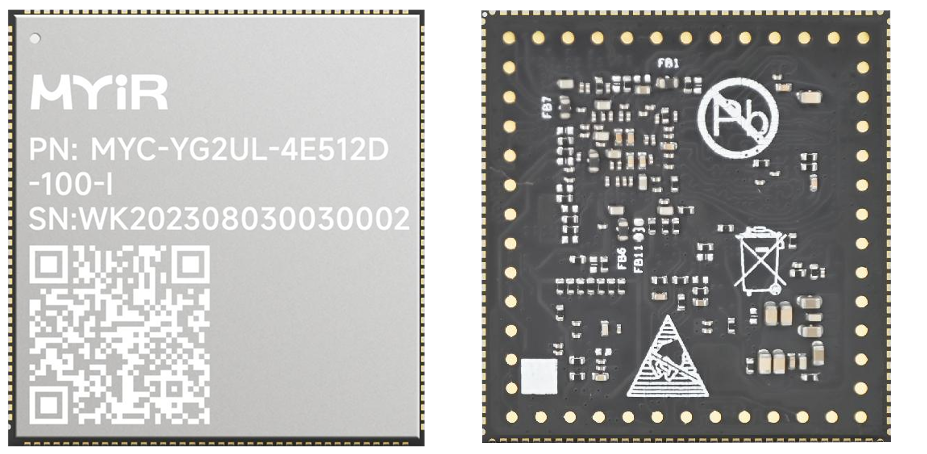

§ MYC-YG2UL	RZ/G2UL	MYC-YG2UL-4E512D-100-I	512MB DDR3L, 4GB eMMC, industrial











2. DEV

Developer Board



Item	CPU	Part Number	Description
MYD-YG2LX	RZ/G2L	MYD-YG2L23-8E1D-120-I	1GB DDR4, 8GB eMMC, with WiFi
	RZ/G2L	MYD-YG2L23-8E2D-120-I	2GB DDR4, 8GB eMMC, with WiFi
MYD-YG2UL	RZ/G2UL	MYD-YG2UL-4E512D-100-I	512MB DDR3L, 4GB eMMC, with WiFi









3. SBC

Single Board Computer



Item (Link)	CPU	Part Number	Description
§ Remi Pi	RZ/G2L	MYD-YG2L23-8E1D-120-C-REMI	1GB DDR4, 8GB eMMC, commercial
