TI CPU Series
AM335x, AM437x, AM6231, AM6252, AM6254
| CPU | Core | Clock [GHz] | NPU/TOPS | GPU | |
| AM335x | Cortex-A8 | 1.0 GHz | |||
| AM437x | Cortex-A9 | 1.0 GHz | |||
| AM6231 | Single Cortex-A53 + Cortex-M4F | 1.4 GHz | |||
| AM6252 | Dual Cortex-A53 + Cortex-M4F | 1.4 GHz | |||
| AM6254 | Quad Cortex-A53 + Cortex-M4F | 1.4 GHz |

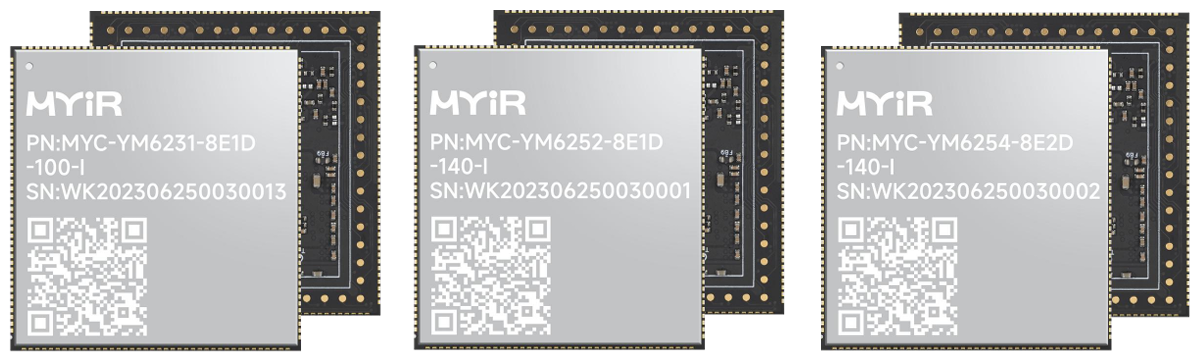

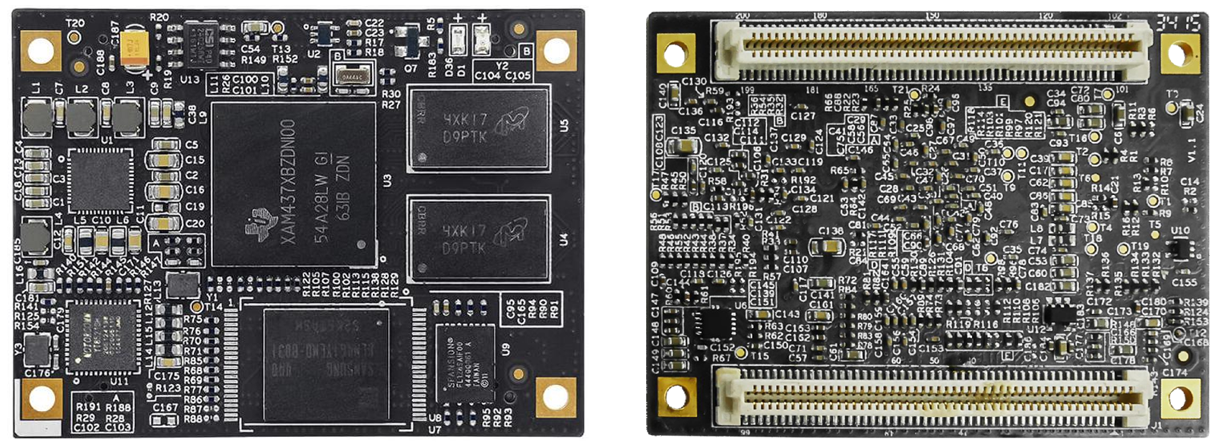

| YM62X | C437X-V2 | C335X-V4 | |
 |
 |
 |
|
| 43 x 45mm | 60 x 45mm | 70 x 50mm |

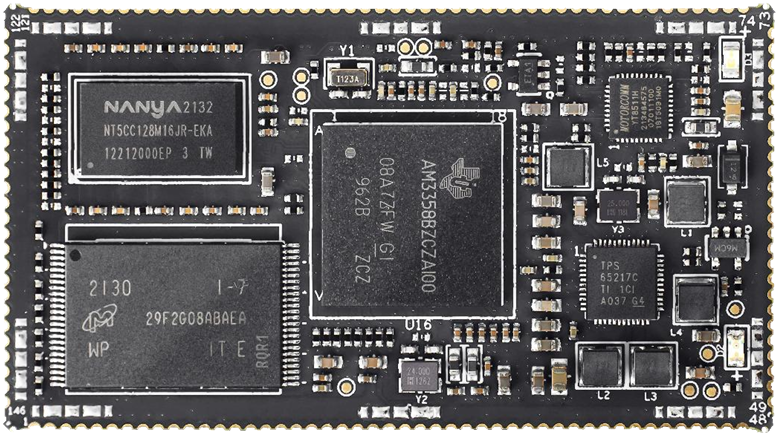

| Y335X-V2 | C335X-GW | ||
 |
 |
||
| 65 x 35mm | 67.6 x 45mm |
1. SoM by MYIR
System on Module
| Item (Link) | CPU | Part Number | Description | |
| § MYC-YM6254 | AM6254 | MYC-YM6254-8E2D-140-I | 2GB DDR4, 8GB eMMC, industrial | |
| § MYC-YM6252 | AM6252 | MYC-YM6252-8E1D-140-I | 1GB DDR4, 8GB eMMC, industrial | |
| § MYC-YM6231 | AM6231 | MYC-YM6231-8E1D-100-I | 1GB DDR4, 8GB eMMC, industrial | |
| § MYC-C437X-V2 | AM4378 | MYC-C4378-V2-4E512D-100-I | 512MB DDR3, 4GB eMMC, industrial | |
| § MYC-C335X-V4 | AM3352 | MYC-C3352-V4-512N512D-80-C | 512MB DDR3, 512MB Nand, commercial | |
| AM3352 | MYC-C3352-V4-256N256D-80-I | 256MB DDR3, 256MB Nand, industrial | ||
| AM3352 | MYC-C3352-V4-512N512D-80-I | 512MB DDR3, 512MB Nand, industrial | ||
| AM3358 | MYC-C3358-V4-512N512D-100-C | 512MB DDR3, 512MB Nand, commercial | ||
| AM3358 | MYC-C3358-V4-512N512D-100-I | 512MB DDR3, 512MB Nand, industrial | ||
| AM3358 | MYC-C3358-V4-256N256D-100-I | 256MB DDR3, 256MB Nand, industrial | ||
| § MYC-Y335X-V2 | AM3352 | MYC-Y3352-V2-256N256D-80-I | 256MB DDR3, 256MB Nand, industrial | |
| AM3358 | MYC-Y3358-V2-256N256D-100-I | 256MB DDR3, 256MB Nand, industrial | ||
| § MYC-C335X-GW | AM3354 | MYC-C3354-256N256D-80-I-GW | 256MB DDR3, 256MB Nand, industrial | |
| AM3354 | MYC-C3354-4E512D-80-I-GW | 512MB DDR3, 4GB eMMC, industrial | ||
| AM3354 | MYC-C3354-8E512D-80-I-GW | 512MB DDR3, 8GB eMMC, industrial |
2. DEV
Developer Board
| Item | CPU | Part Number | Description | |
| MYD-YM6254 | AM6254 | MYD-YM6254-8E2D-140-I | 2GB DDR4, 8GB eMMC, with WiFi/BT | |
| MYD-YM6252 | AM6252 | MYD-YM6252-8E1D-140-I | 1GB DDR4, 8GB eMMC, with WiFi/BT | |
| MYD-YM6231 | AM6231 | MYD-YM6231-8E1D-100-I | 1GB DDR4, 8GB eMMC, with WiFi/BT | |
| MYD-C335X-GW | AM3354 | MYD-C3354-256N256D-80-I-GW | 256MB DDR3, 256MB Nand, with WiFi/BT | |
| AM3354 | MYD-C3354-4E512D-80-I-GW | 512MB DDR3, 4GB eMMC, with WiFi/BT |
